Vulcan Heat Transfer Skids

High Performance Modular Heating Systems

Whether you're heating water, glycol, or thermal fluids up to 400°F, Vulcan skids are built to keep your operation running smoothly.

Request A Vulcan Quote

A Smarter Approach to Thermal Fluid Control

Vulcan heat transfer skids give you better process control without bulky boilers or long installs. Built for batch precision and uptime reliability, these systems bring peace of mind to high-stakes production.

Why Choose Vulcan?

Quick Lead Times – Stocked frames and simplified assembly = faster delivery.
Scale with Ease – Upgrade control or cooling as your process grows.
High-Temp Capable – Standard 240°F, configurable up to 400°F.
Operator-Friendly – Clear gauges, manual or PID control, and safe shutoff.
Field-Ready – Fully assembled, factory tested, and easy to integrate.

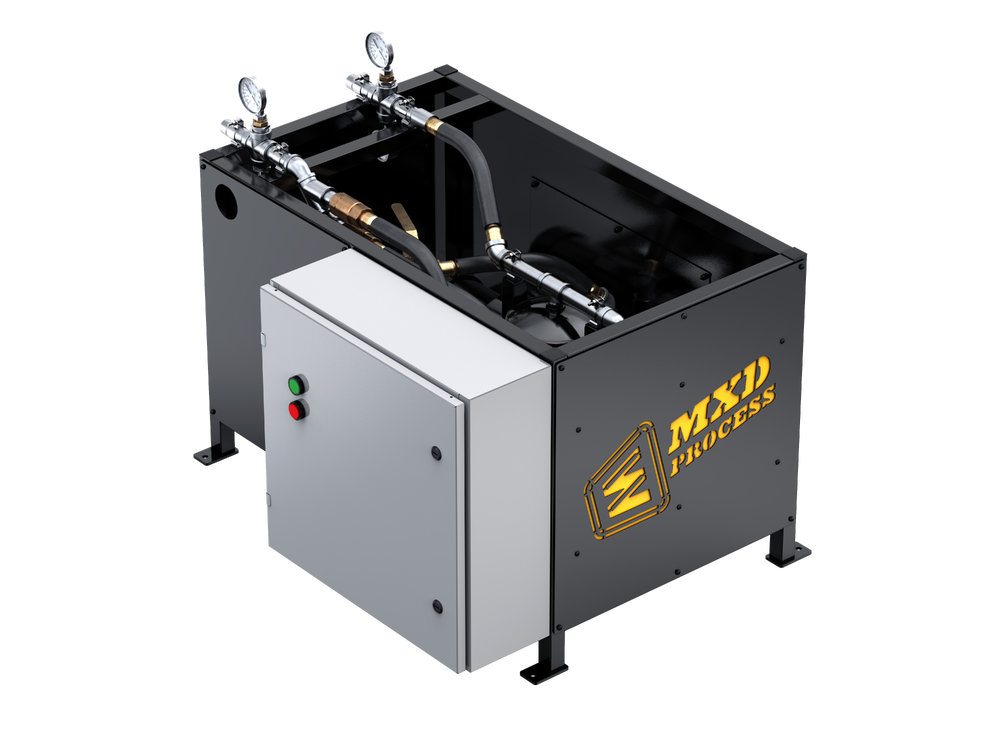

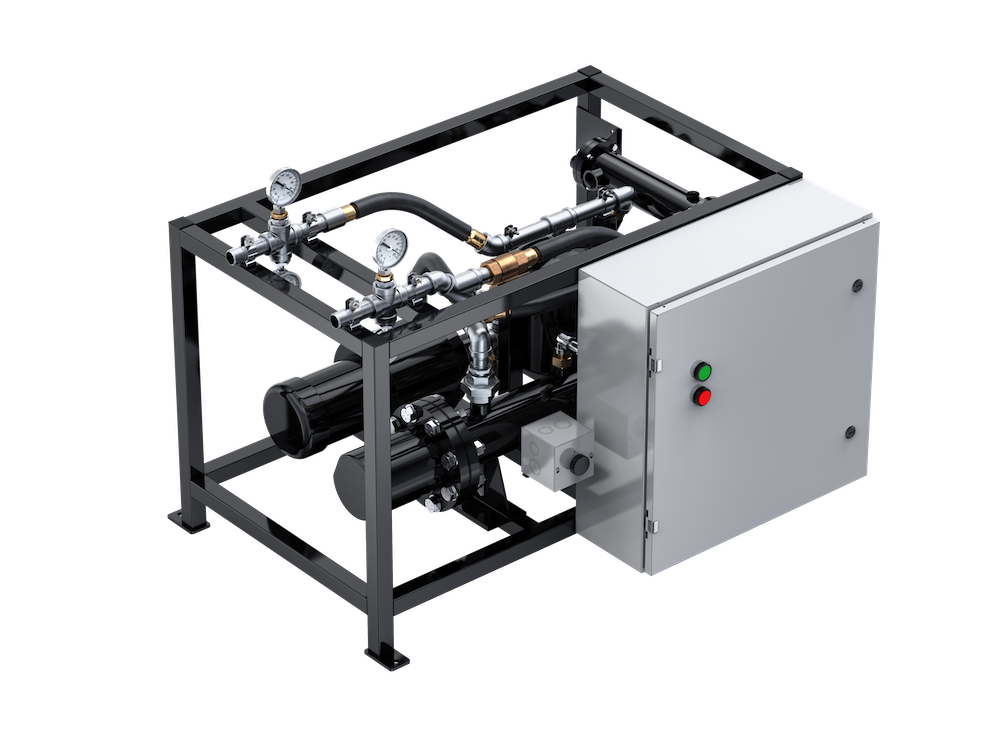

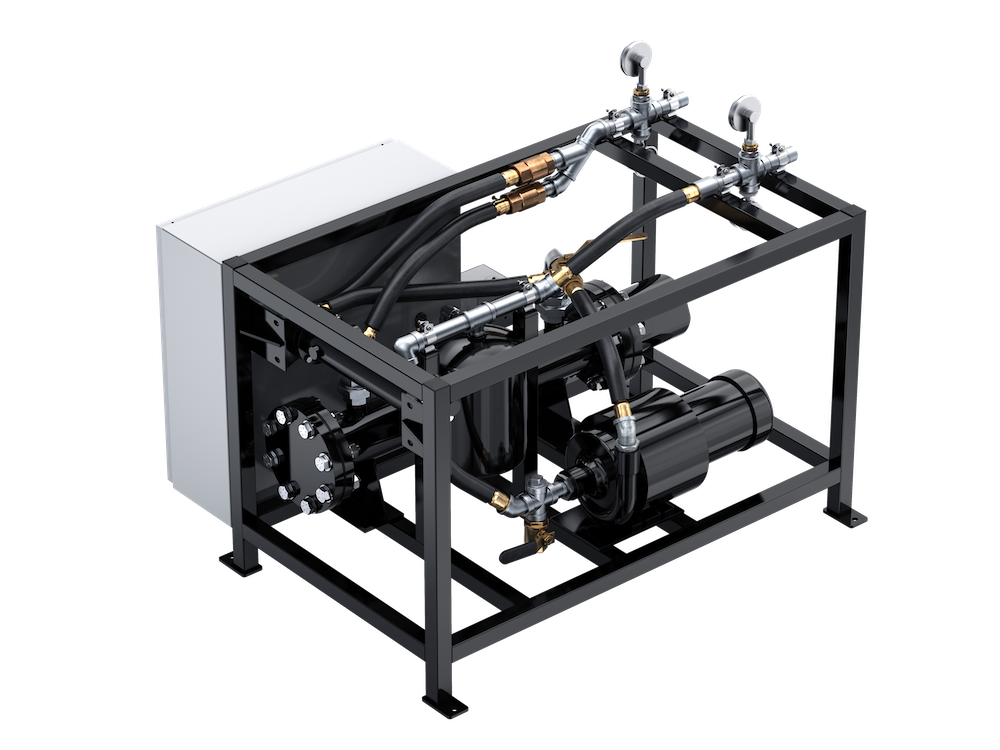

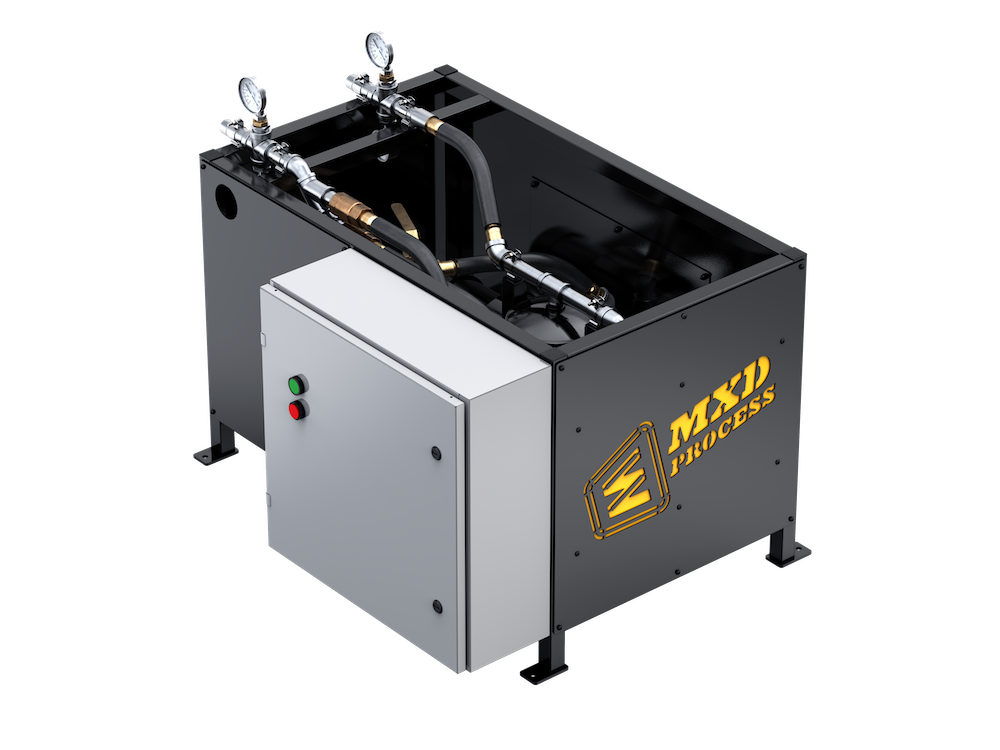

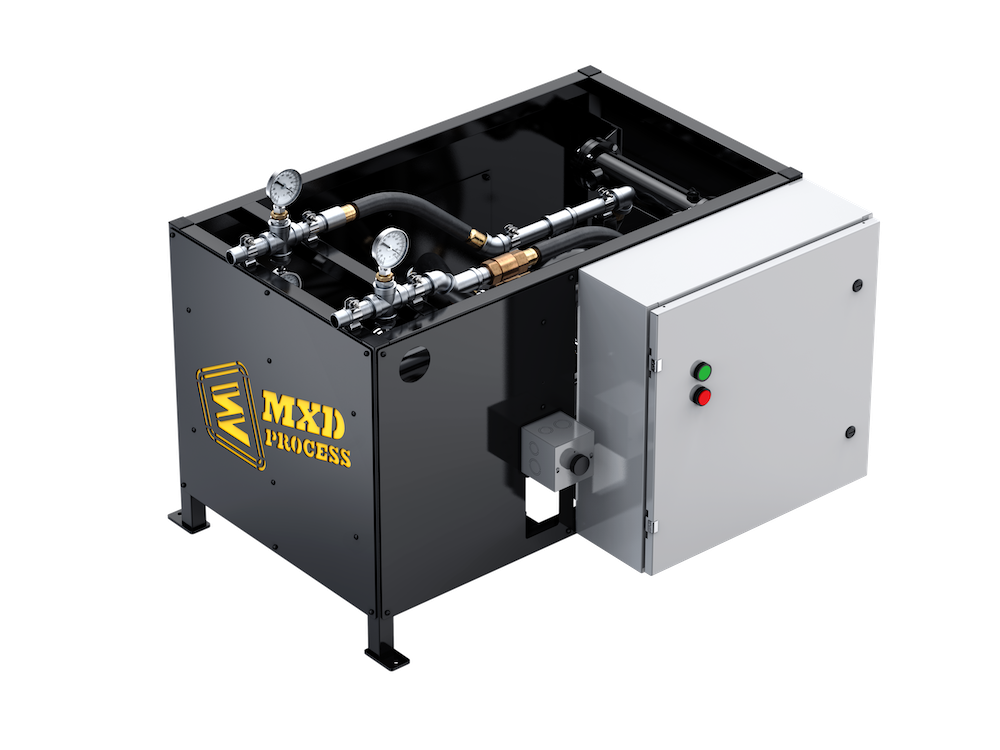

Vulcan Heat Transfer Skid

Frame Size 1

Starting at $20,900

6KW, 12KW, & 18KW Options

The Vulcan Frame Size 1 delivers compact, high-efficiency heat transfer in a footprint that’s easy to integrate into existing systems. It’s a smart fit for small- to mid-sized tanks or batch processes where uptime, simplicity, and consistent performance matter. With flexible control options and a rugged, modular design, this unit gives you everything you need—and nothing you don’t—to maintain precise fluid temperatures without overcomplicating your setup. If you're looking for dependable thermal control without the bulky boiler or long lead time, this is it.

Request A Quote

Compact footprint: 45” x 37” x 38”

Operating temperature up to 240°F (400°F available with upgrade)

Supports Level 1 (analog) or Level 2 (PID) control systems

Inline expansion tank and pressure/temp indicators included standard

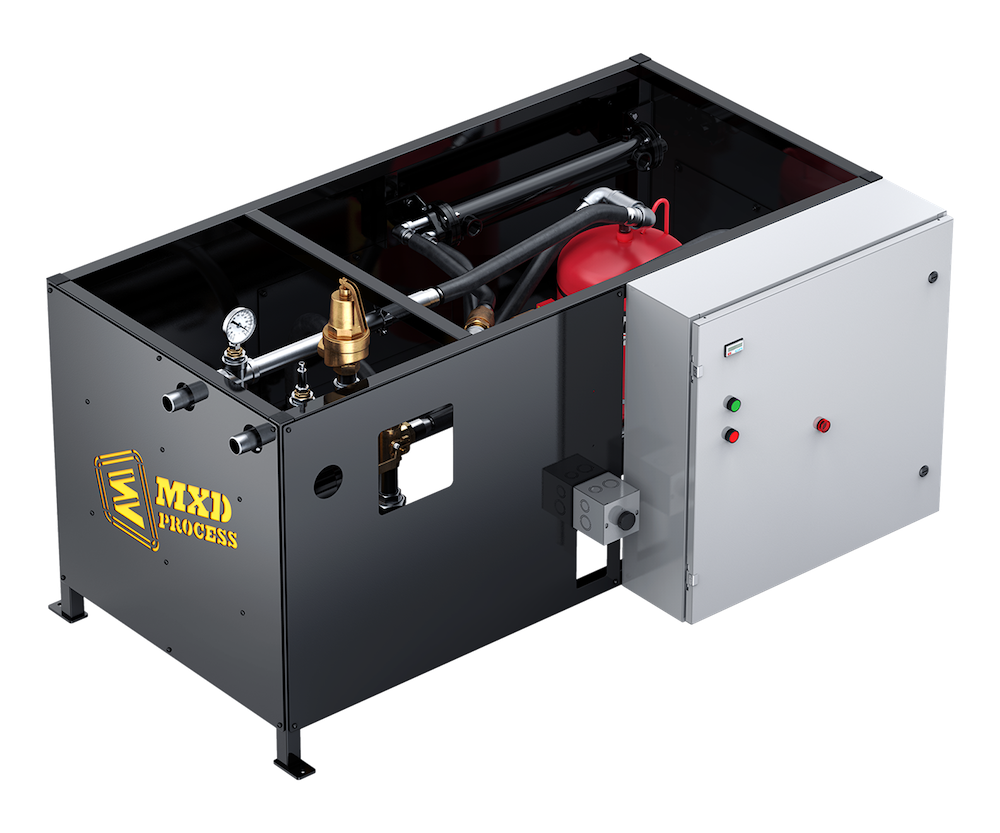

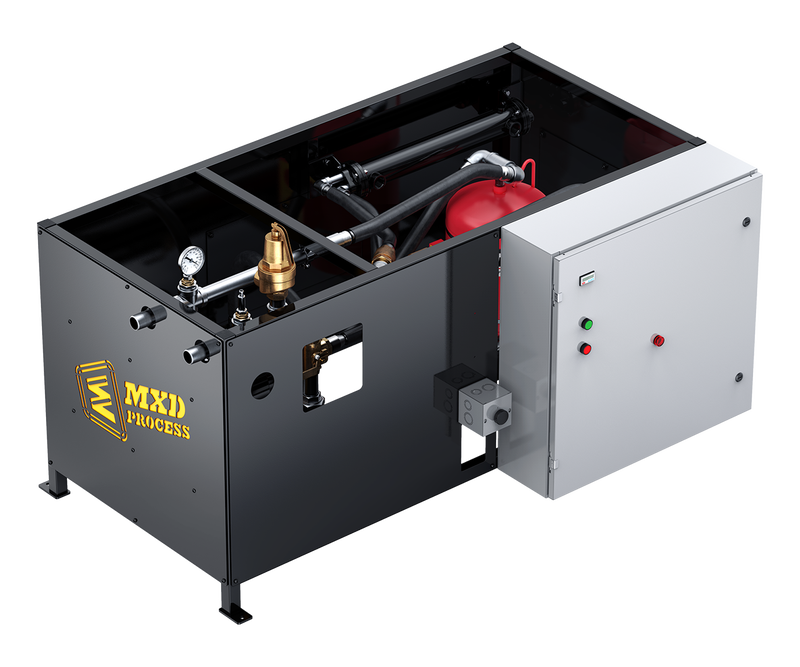

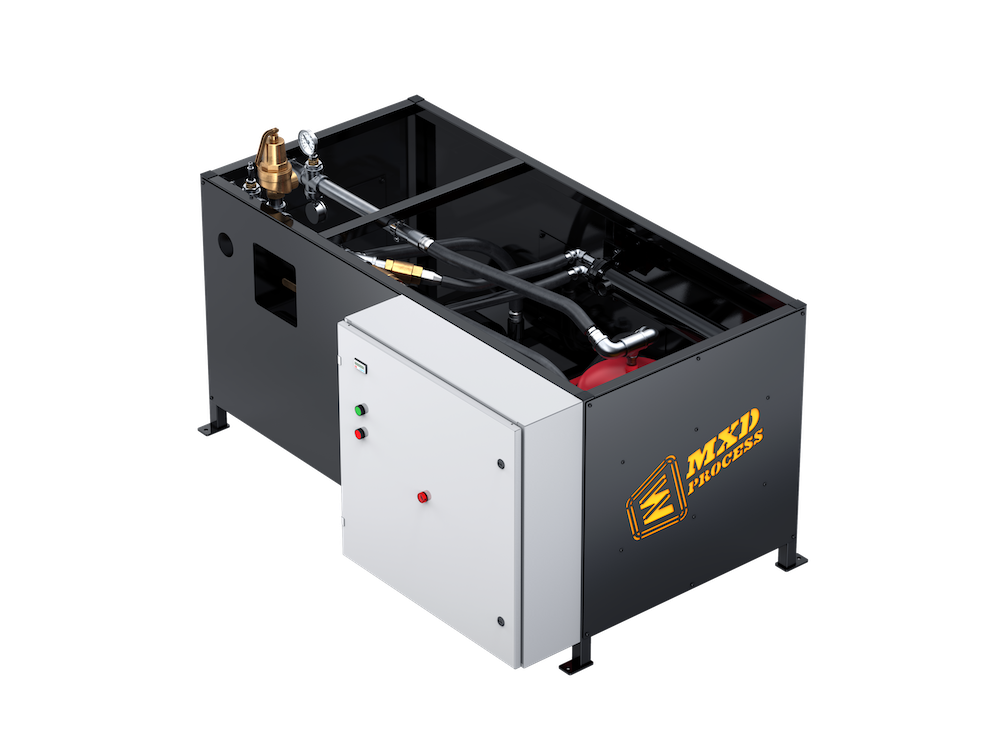

Vulcan Heat Transfer Skid

Frame Size 2

Starting at $29,240

24KW & 36KW Options

When your process demands more power and tighter control, the Vulcan Frame Size 2 is ready to step in. Designed for high-throughput applications and larger systems, it brings serious heating performance in a clean, modular package. Whether you're supporting a multi-tank line or ramping up your thermal processing capacity, this unit is built to scale with your operation. Simple to operate, easy to maintain, and engineered to deliver—this is process heating without the pain points.

Request A Quote

Larger format: 70” x 44” x 42”

Delivers closed-loop heating up to 400°F with fast ramp-up times

Supports Level 1 (analog) or Level 2 (PID) control systems

Optional cooling loop for post-process cooldown using shell & tube exchanger

Heat Transfer Skid Features

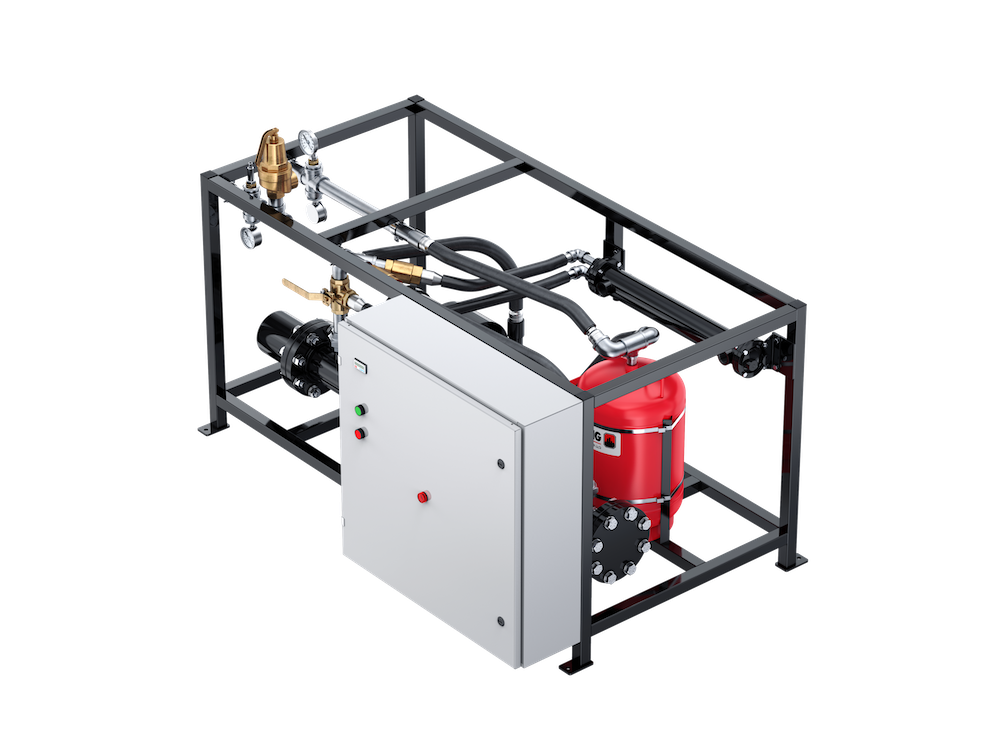

Vulcan Heat Transfer Skids are self-contained, factory-tested systems for circulating, heating, and optionally cooling process fluids. They feature modular frames and precision centrifugal pumps—ready to plug into tanks, reactors, or process vessels. Every unit includes pressure and temperature gauges, expansion tank, and flexible configuration options to match your production needs.

Standard Features:

Modular Frame Design: Configure for current needs and upgrade later without replacing the system.
Up to 400°F Operating Temps: High-temp-ready with Incoloy 800 heating elements.
Analog or PID Digital Control: Choose from basic, intermediate, or advanced automation.

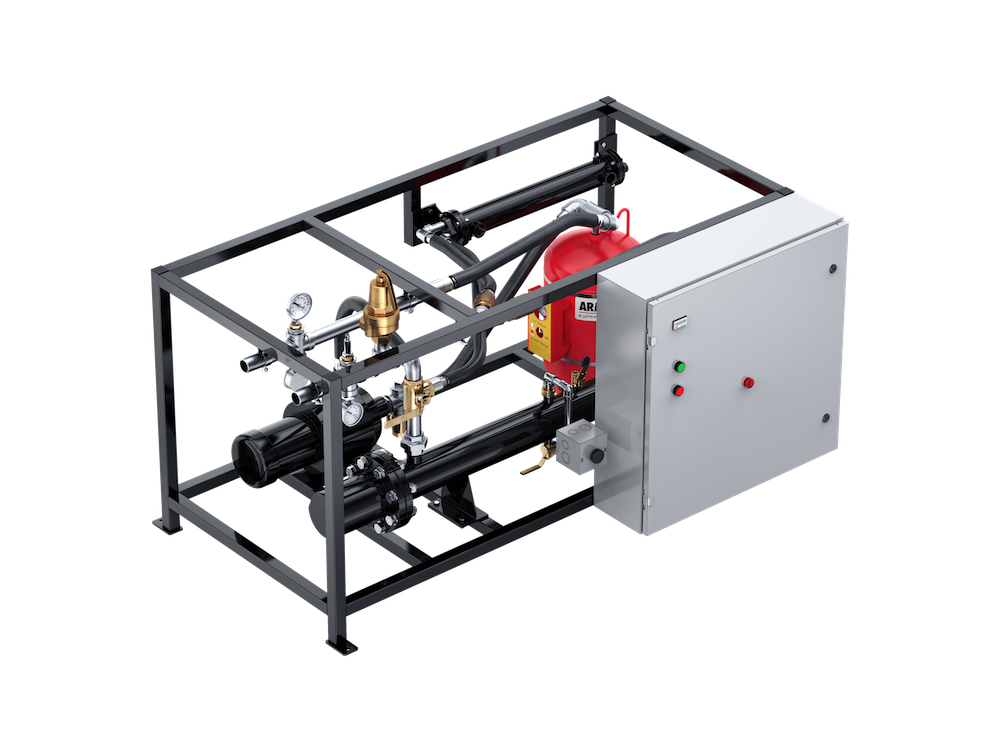

Optional Cooling Loop: Bolt-on shell and tube cooling system for post-process cooldown.
Inline Expansion Tank: Maintains loop pressure without requiring a separate reservoir.
Centrifugal Pump: Industry-trusted, high-temp circulation built for 24/7 uptime.
NPT, Flanged, or Tri-Clamp Fittings: Easily integrate into your current process piping.

Built for you, backed by us

Because we don't just sell heating systems—we engineer smarter ways to move your process forward. When you buy a Vulcan from MXD Process, you're not just getting a skid; you're getting a solution built on decades of liquid processing expertise and real-world application insight.

We design and build every Vulcan skid with the same goal: make heat transfer simpler, faster, and more dependable for our customers. From upfront pricing and industry-best lead times to in-stock frames and responsive support, we make it easy to get exactly what you need without the red tape.

Whether you're upgrading an existing line or launching something new, we deliver more than equipment—we deliver confidence.

Ready to revolutionize your process?

Need something more specific than our standard product offering? Our Technical Specialists can design and engineer a unit to your exact specifications. Let's work together to achieve excellence.
