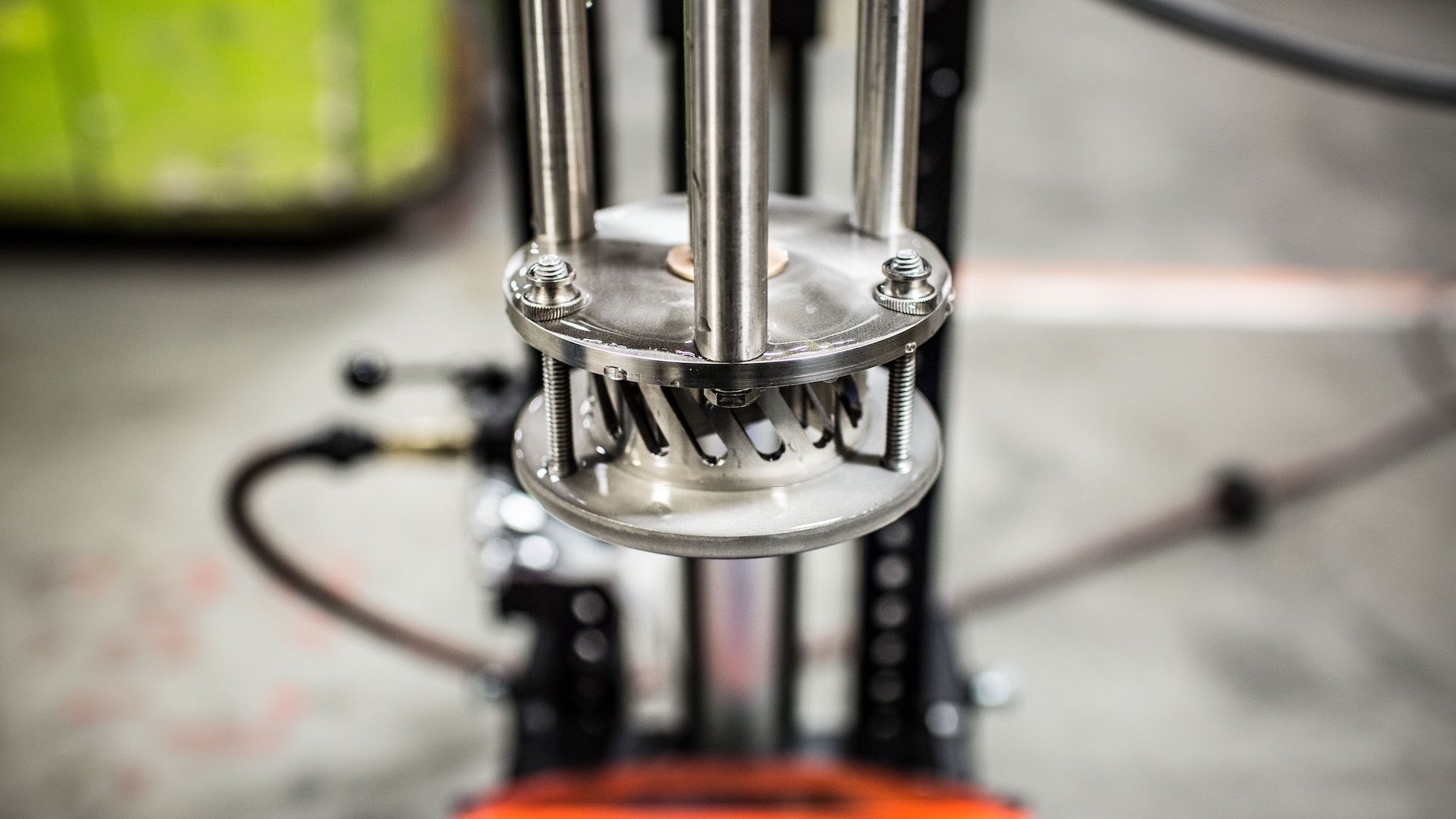

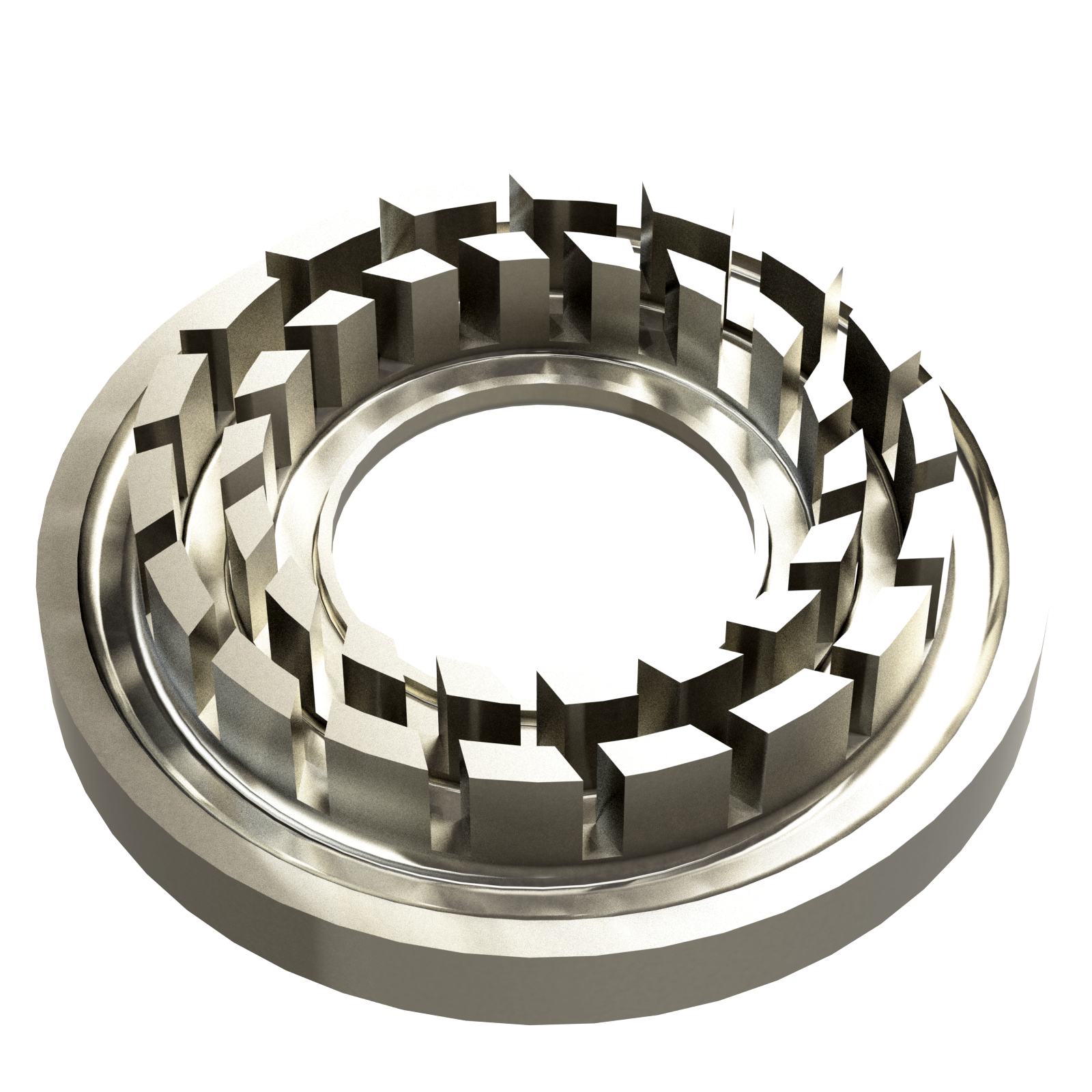

The Rotor and Stator
The rotor and stator are two essential components in high-shear mixers. Together, these two high-shear mixer parts create the shear forces necessary for effective mixing.
The rotor, which spins at high speeds, draws the material into the mixer, while the stationary stator forces it through narrow gaps, creating high shear. This interaction breaks down particles, disperses solids, and creates emulsions.
The Mechanics of High Shear Rotor Stator Mixers
The effectiveness of rotor stator mixers lies in their reliance on shear force, a key factor in achieving rapid and efficient particle size reduction. As the rotor spins at high speeds, it draws materials into the rotor-stator assembly.
The materials are then forced through the narrow gap between the rotor and stator, where they are subjected to intense shearing action.
This process breaks down particles and droplets, reducing their size and distributing them evenly throughout the mixture. The result is a stable, uniform emulsion or dispersion with excellent texture and consistency.
.jpg)
High-Shear Mixing Blades & Impellers
Without blades and impellers creating shear force, high-shear mixers wouldn’t function. Their design, material composition, size, and speed are critical in determining efficiency.
The shape of the blade or impeller influences the type and intensity of mixing. Designs with sharp edges, multiple teeth, or more intricate geometries produce higher levels of shear, making them suitable for applications that require fine emulsions, dispersions, or particle size reduction.
In contrast, smoother or broader shapes are better suited for low-shear applications where gentle mixing or minimal agitation is needed.
Other High-Shear Mixer Parts
The Motor
A powerful motor is needed to power the rotor at high speeds. The speed and horsepower of the motor directly influence the mixing capacity and efficiency, especially for challenging, high-viscosity materials.
Seals and Bearings
High-shear mixers operate under high stress and can generate significant heat and pressure. Seals and bearings ensure smooth operation and prevent material leakage.
These components also protect the motor and other sensitive parts from wear and tear, extending the mixer’s lifespan.
Control System
Many high-shear mixers have a control panel, allowing operators to adjust the speed, mixing time, and other parameters to optimize the process for different materials and applications.
Advanced models may feature automated controls, enabling precise adjustments to achieve desired product characteristics.
.png?width=850&height=850&name=MXD%20Manufacturing%20Day%20(1).png)
Food & Beverage Industry
In the food and beverage sector, product texture, flavor distribution, and visual appeal are important for consumer satisfaction and regulatory compliance. High shear mixers are widely used to create stable emulsions, homogeneous suspensions, and smooth textures in products such as:
- Salad dressings, sauces, and marinades
- Dairy blends like flavored milks, yogurts, and cream cheese
- Bakery fillings and frosting
- Smoothies and ready-to-drink beverages
- Condiments such as mayonnaise, ketchup, and mustard
These mixers ensure even ingredient distribution and prevent separation over time, resulting in longer shelf life and a consistent customer experience. High shear mixing also accelerates production, allowing food manufacturers to process large volumes efficiently while maintaining tight quality standards.

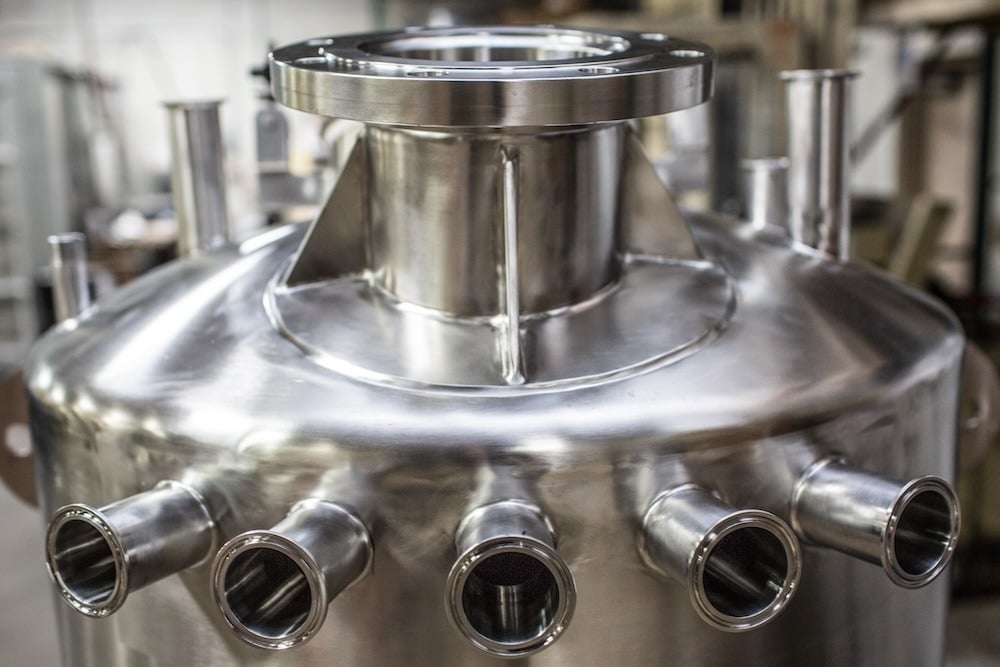

Pharmaceutical Industry
Precision is important in pharmaceutical manufacturing. High shear mixers play a significant role in suspending active pharmaceutical ingredients (APIs) evenly throughout various dosage forms, including:
- Oral suspensions and syrups
- Topical creams and gels
- Injectable emulsions
- Nutraceuticals and vitamins
Uniformity in particle distribution ensures accurate dosing, efficacy, and safety. High shear mixing also supports the creation of nanoemulsions and micronized particles, which can improve bioavailability and therapeutic outcomes. These mixers are often integrated with clean-in-place (CIP) systems to meet stringent hygienic standards.
Cosmetic & Personal Care Industry
High shear mixing is essential in producing cosmetics and personal care products where consistency, smoothness, and texture directly impact product perception and effectiveness. These mixers are commonly used for:
- Facial creams and moisturizers
- Hair conditioners and styling products
- Body lotions and exfoliants
- Lipsticks and balms
- Sunscreens and serums
The intense shear force helps emulsify oils and water, incorporate pigments, and disperse fine powders uniformly. It also reduces air entrapment, which is needed to achieve luxurious, smooth textures and prevent oxidation. Manufacturers rely on high shear technology to achieve visually appealing, stable formulations with long shelf lives.
Chemical Processing Industry
The chemical industry often deals with challenging materials, abrasive powders, highly viscous resins, and corrosive additives that require robust mixing solutions.
High shear mixers are used to:
- Disperse pigments and dyes in solvents
- Emulsify industrial lubricants and coolants
- Blend polymers and adhesives
- Produce cleaning and sanitizing solutions
- Homogenize suspensions of metal oxides or catalysts
These mixers deliver uniform particle size distribution, eliminate clumping, and improve reaction times during downstream processing. Their adaptability to various chemical properties makes them a go-to solution for both batch and continuous manufacturing processes.

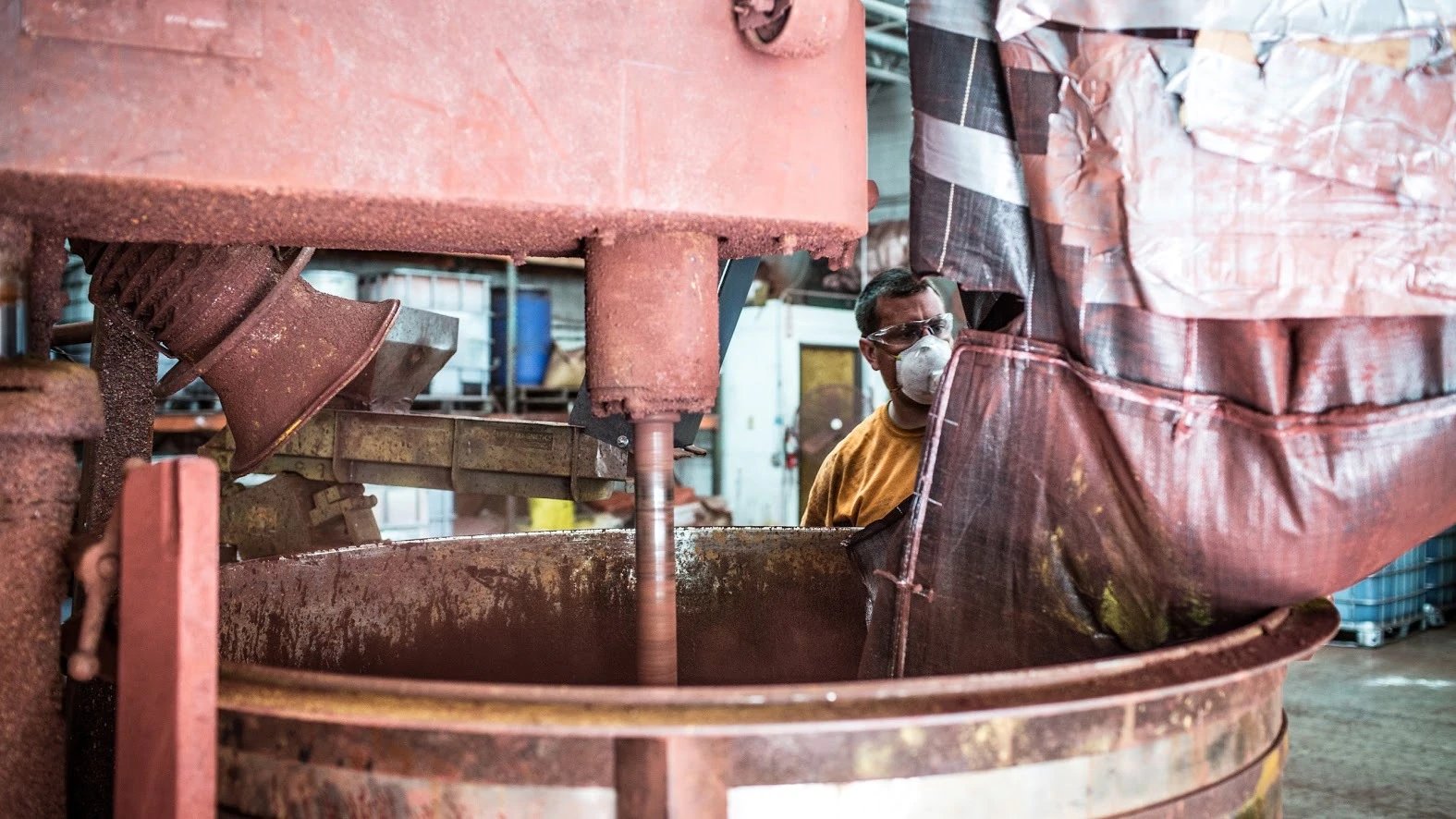

Paints, Coatings & Adhesives
For paints, coatings, sealants, and adhesives, consistent particle dispersion and smooth texture are essential for product performance.
High shear mixers help achieve:
- Even pigment distribution for color accuracy
- Uniform viscosity for easy application
- Improved bonding properties in adhesives
- Stability against settling or phase separation
By breaking down agglomerates and dispersing solids into the resin or base fluid, high shear mixing ensures the final product performs reliably in the field, whether applied with a brush, roller, spray, or automated system.
